Our Products



SWITCH POINT ROLLER

MODEL SA6

Patent No. 5, 501, 418



Features & Specifications

  • Open frame construction

  • Carrying handle

  • Adjustable tie-bar

  • Spring loaded adjustable roller cage

  • Full contact friction secured rail base clamp

  • Pre-lubricated roller with oil impregnated bushings

  • Works on manual and power switches

  • Works on any size turnout

  • Works on any size rail

  • Easy installation and removal

  • No drilling of rail during assembly

  • Maintenance free

  • Low cost

  • Shipped fully assembled in a box

  • Weight - 82 lbs each set (2 per set)

BACK TO TOP


SIGN POST HOLDER

MODEL SS3



Features & Specifications

  • Carrying handle

  • Flats to prevent rotation

  • Replaceable striking pad

  • Sign pins included

  • Post can be pinned

  • Flag mounts

  • Overall length 36"

  • Weight:  15 lbs.

Flag & Post Not Included



BACK TO TOP


FLAT BAR SIGN STAND

MODEL FB9

Features & Specifications

  • Carrying handle

  • Replaceable striking pad

  • 3/8" thru holes for mounting flag (11" and 16" centers)

  • 3/8" pins with heads (11" centers)

  • Easy driving

  • Overall lenth:  51"

  • Weight:  17 lbs.



3/8" Pin with head used with mini flags





BACK TO TOP

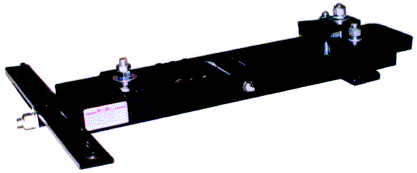

RAIL JOINT ALIGNMENT TOOL

MODEL PEEWEE

  Features & Specifications

  • Remove twist at rail joint during welding
  • Specializing at joints near frogs and switches
  • Move head of rail while keeping the base stationary
  • Can be used by one person
  • From alignment to start of weld is only minutes
  • Can be used on any size rail
  • Carrying handle
  • One piece design
  • Weight 18 lbs.



BACK TO TOP


TIE PLUG DRIVER

MODEL PD52

Features & Specifications

  • Hand grip

  • 5/8" square hardened tip

  • Hand protector eliminates pinch point

  • Internal striking device eliminates distortion

  • Overall length: 58"

  • Weight:  10 lbs.



BACK TO TOP

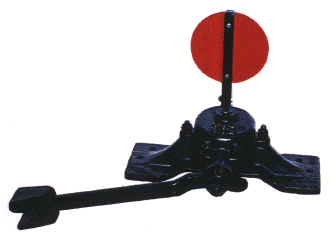

MAST EXTENSION

Hub Style Switch Stand

MODEL H13

Features & Specifications

  • Hardware supplied for mounting

  • Clamp mounting/through mounting holes

  • Holes for sign/sign bolts not included

  • Overall length:  13"

  • Weight:  2 lbs.

Flag & Switch Stand Not Included.





BACK TO TOP


MULTI-HOLE LOCKING PIN

MODEL LP40

Features & Specifications

  • Zinc coated assembly

  • Chamfered end

  • Multi-locking holes

  • 9" Attaching chain

  • Weld or bolt mount

  • Locking hole size:  29/64"

  • Overall length:  6 1/4"



BACK TO TOP

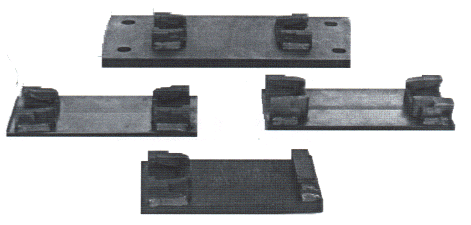

SPECIALTY TIE PLATES

Features & Specifications

  • Tie plates made to your specifications

  • Made to be ued on any tie (concrete, steel, or wood)

  • Can be made with cants

  • Are used with weld on shoulders



BACK TO TOP

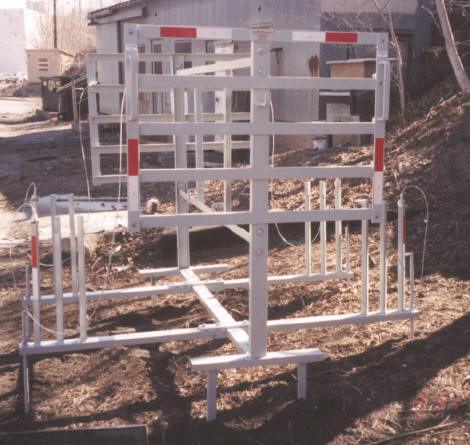

Rack shown above with no covers.

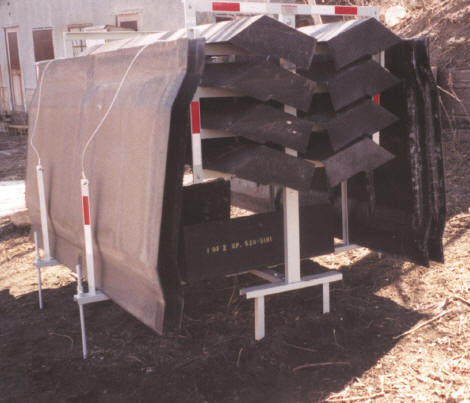

Rack shown above with covers.

HEATER COVER STORAGE RACK

MODEL FR8

Patent No. 6,571,963 B2

Features & Specifications

  • Holds eight rail heater covers, one switch heater cover and four center covers

  • Easy storage and removal

  • Locking capabilities.

  • Base is mounted in ground for stability.

  • Zinc plated hardware included

  • High quality exterior prime and gray paint

  • Reflective tape for visibility

  • Easy 3 step assembly instructions



BACK TO TOP


DRIFT PIN STRIKING PAD

MODEL DV10

Patent No. 6,854,945

Features & Specifications

  • Absorbs impact of driving device

  • Provides a large flat striking surface

  • Increases life of drift pin

  • Eliminates shrapnel for safety

  • Lab tested for durability

  • Can be installed on new or used drift pins

  • Custom design available for special applications



*Drift Pin Not Included

BACK TO TOP


RAIL CART

MODEL RC75

Features & Specifications

  • 7500# capacity

  • Deck size 6' x 8'

  • 16" wheels

  • Roller bearing stub axle

  • All welded steel construction

Options:

  • Customer specifications or special applications can be quoted

  • Tow bar

  • 3 axle carts

BACK TO TOP

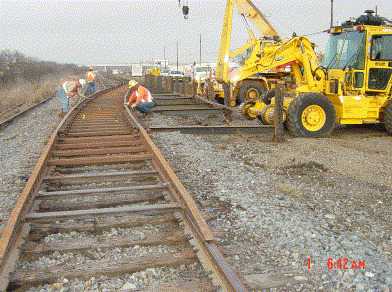

PORTABLE TURNOUT

Patent Pending



Features & Specifications

  • Includes on ramp and eight Panels

  • 20' long panels

  • Each panel weighs approximately 3,000#

  • Uses 90# rail with joint bars

  • Leveling jacks on panels located over main line rail

  • Pick up points on all panels and ramp

  • Left hand or right hand installation

  • Chain sling provided

Options:

  • Outriggers for support

  • Panels for portable spur

BACK TO TOP

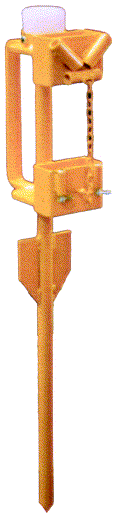

SELF-DRIVING SIGN STAND





MODEL SD20

Features & Specifications

  • Handles for easy driving

  • High impact replaceable striking pad

  • 3/8" thru holes for mounting flag (16" center for mini flags)

  • Fins to prevent rotation

  • Tab lock style double wire pin

  • Extendable flag tube overall length 100" extended, 78" retracted

  • Weight 21lbs.



BACK TO TOP

You may also download our catalog in pdf format by clicking on the Download Catalog link at the top of this page.  You will need Adobe Acrobat Reader to view the pdf file.
